Name: Dobradiça pouco chato com corpo de aço de treatmen calor para fazer orifícios
Brand: China Oil Seal Co.,Ltd
SKU: LC17190
Price: Negociável USD
Availability: InStock

Casa Produtos Bocados de broca do TCT

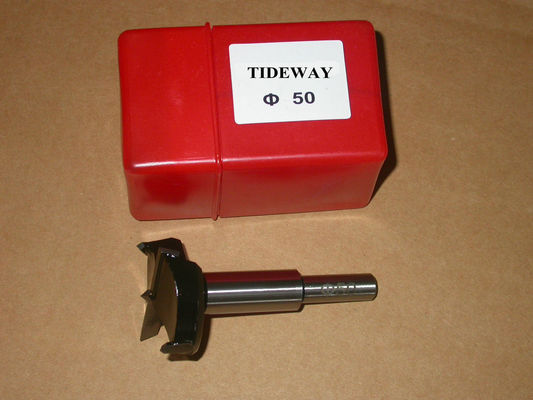

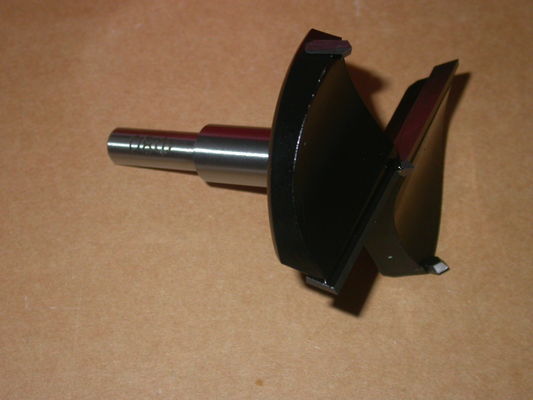

Dobradiça pouco chato com corpo de aço de treatmen calor para fazer orifícios

Detalhes do produto:

Lugar de origem:	Hangzhou
Marca:	Tideway
Certificação:	ISO9001 EN847-1
Número do modelo:	LC17190

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100 UNID POR TAMANHO
Preço:	USD1.3-USD3.88
Detalhes da embalagem:	Caixa plástica
Tempo de entrega:	35 dias úteis
Termos de pagamento:	T/T ou l/C na vista
Habilidade da fonte:	5000pcs por dia

Contato

Descrição de produto detalhada

Destacar:

bocado de broca do tct

bocado de broca do núcleo

Articule bocado aborrecido com corpo de aço dos treatmen do calor para fazer através dos furos

Bocados de broca feitos de pontas do aço carbono e do carboneto. Corpo de aço com tratamento térmico. para certificar-se de forte bastante e não quebrado. Superfície pintada com cor (RH) vermelha (LH) ou preta.

Nós temos o ponto de Brad, ponto de V, para as dobradiças e escareamos tipos diferentes.

pata modular de 10mm com plano. T.C.T derruba com ponto central e o parafuso M5*10 ajustável.

Aplicações:

Os bocados fazem através dos furos ou furos cegos ou furos nas dobradiças ou nos tanques em máquinas aborrecidas pontos a ponto e em linha máquinas. Para os painéis crus e da melamina, MDF, painéis da Multi-camada

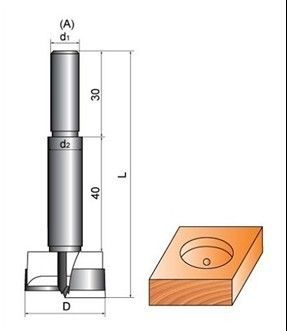

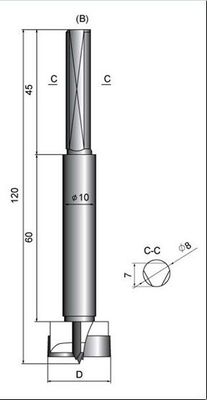

Especificações:

Número da peça.	D	d1	d2	L
LC171901014	14,0	8,0	10,0	85,0
LC171901015	15,0	8,0	10,0	85,0
LC171901016	16,0	8,0	10,0	85,0
LC171901018	18,0	8,0	10,0	85,0
LC171901019	19,0	8,0	10,0	85,0
LC171901020	20,0	8,0	10,0	85,0
LC171901022	22,0	8,0	10,0	85,0
LC171901023	23,0	8,0	10,0	85,0
LC171901024	24,0	8,0	10,0	85,0
LC171901025	25,0	10,0	12,0	85,0
LC171901026	26,0	10,0	12,0	85,0
LC171901027	27,0	10,0	12,0	85,0
LC171901028	28,0	10,0	12,0	85,0
LC171901029	29,0	10,0	12,0	85,0
LC171902030	30,0	10,0	12,0	87,5
LC171902032	32,0	10,0	12,0	87,5
LC171902034	34,0	10,0	12,0	87,5
LC171902035	35,0	10,0	12,0	87,5
LC171902036	36,0	10,0	12,0	87,5
LC171902038	38,0	10,0	15,0	87,5
LC171902040	40,0	10,0	15,0	87,5
LC171902042	42,0	10,0	15,0	87,5
LC171902043	43,0	10,0	15,0	87,5
LC171902044	44,0	10,0	15,0	87,5
LC171902045	45,0	10,0	15,0	87,5
LC171902046	46,0	10,0	15,0	87,5
LC171902048	48,0	10,0	15,0	87,5
LC171902050	50,0	10,0	15,0	87,5
LC171902052	52,0	10,0	15,0	87,5
LC171902053	53,0	10,0	15,0	87,5
LC171902054	54,0	10,0	15,0	87,5
LC171902055	55,0	10,0	15,0	87,5
LC171902056	56,0	10,0	15,0	87,5
LC171902058	58,0	10,0	15,0	87,5
LC171902060	60,0	10,0	15,0	87,5
LC171902063	63,0	10,0	15,0	87,5
LC171902065	65,0	10,0	15,0	87,5
LC171902070	70,0	10,0	15,0	87,5
LC171902075	75,0	10,0	15,0	87,5
LC171902080	80,0	10,0	15,0	87,5
